All kinds of floor compartments of factories with clear, ventilation, slip resistance, good drainage, high safety, and with elegant appearance.

Purpose of Grating :

1. All Kinds of factory buildings, floors and separation of levels.

2. Platforms of steel structure.

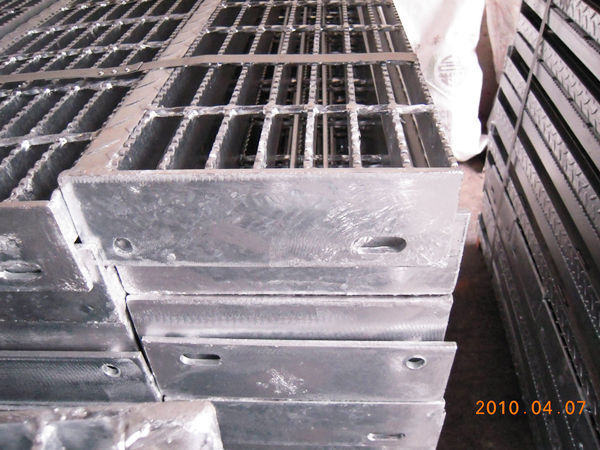

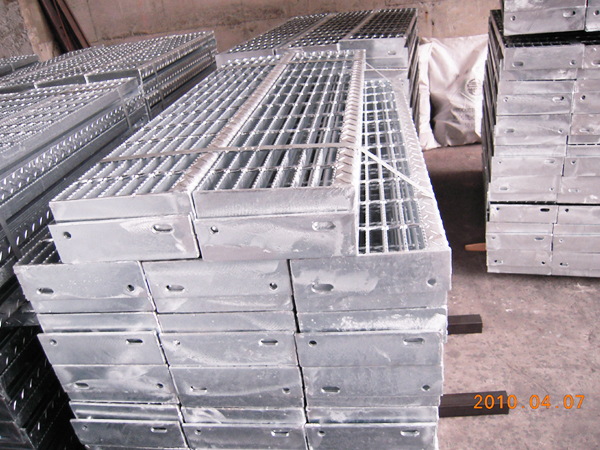

3. Stair Tread

4. Roads, ditches, water catchment basin.

5. Storage racks.

6. Mechanical platforms.

7. Ships.

Flat Grating

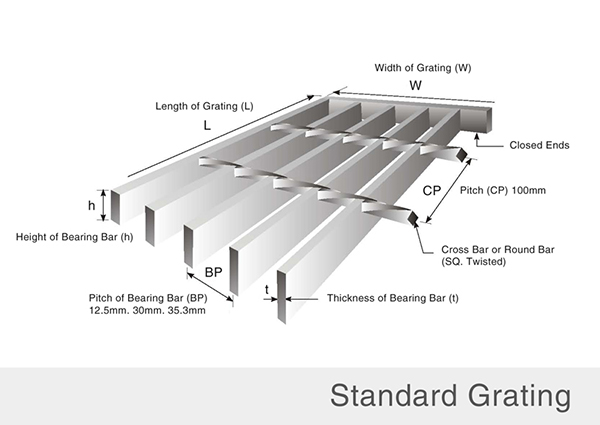

NO	Flat Iron (hxt)	Pitch of Bearing Bar (BP)	Cross Bar	Pitch (CP)
FB193	19*3	30	6°	100
FB1945	19*4.5	30	6°	100
FB253	25*3	30	6°	100
FB2545	25*4.5	30	6°	100
FB256	25*6	30	6°	100
FB323	32*3	30	6°	100
FB3245	32*4.5	30	6°	100
FB326	32*6	30	6°	100
FB383	38*3	30	6°	100
FB3845	38*4.5	30	6°	100
FB386	38*6	30	6°	100
FB4445	44*4.5	30	6°	100
FB446	44*6	30	6°	100
FB5045	50*4.5	30	6°	100
FB506	50*6	30	6° or 8°	100
FB509	50*9	35.3	8°	100
FB656	65*6	30	8°	100
FB659	65*9	35.3	8°	100
FB756	75*6	30	8°	100
FB759	75*9	35.3	8°	100
FB906	90*6	30	8°	100
FB909	90*9	35.3	8°	100
FB1006	100*6	30	8°	100
FB100*9	100*9	35.3	8°	100

I-Shape Flat Iron Grating

NO	Flat Iron (hxt)	Pitch of Bearing Bar (BP)	Cross Bar	Pitch (CP)
IB2553	I25*5*3	30	6°	100
IB3253	I32*5*3	30	6°	100
IB3853	I38*5*3	30	6°	100
IB4453	I44*5*3	30	6°	100
IB5074	I50*7*4	35.3	8°	100
IB5574	I55*7*4	35.3	8°	100
IB6074	I60*7*4	35.3	8°	100
IB6574	I65*7*4	35.3	8°	100
IB7574	I75*7*4	35.3	8°	100

Fine Mesh Grating

NO	Flat Iron (hxt)	Pitch of Bearing Bar (BP)	Cross Bar	Pitch (CP)
FB193	19*3	12.5	Ф5 or 5°	100
FB253	25*3	12.5	Ф5 or 5°	100
FB323	32*3	12.5	Ф5 or 5°	100
FB383	38*3	12.5	Ф5 or 5°	100
FB443	44*3	12.5	Ф5 or 5°	100
FB503	50*3	12.5	Ф5 or 5°	100

Serrated Grating

NO	Flat Iron (hxt)	Pitch of Bearing Bar (BP)	Cross Bar	Pitch (CP)
SF2545	25*4.5	30	6°	100
SF3245	32*4.5	30	6°	100
SF3845	38*4.5	30	6°	100
SF5045	50*4.5	30	6°	100
SF506	50*6	30	6°	100

"inch" size also available by request

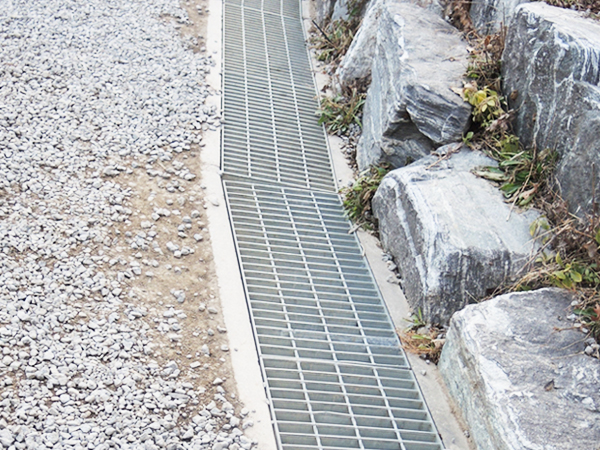

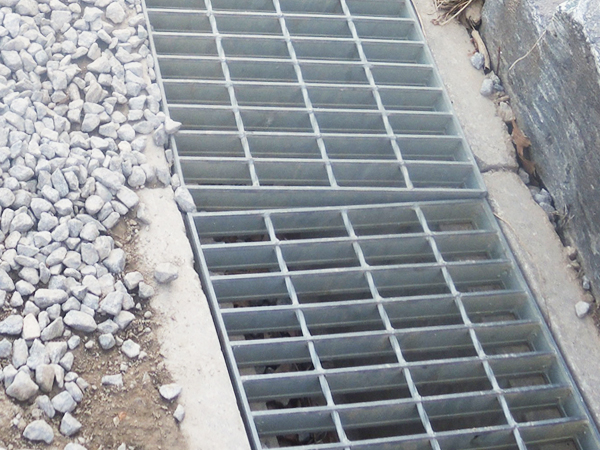

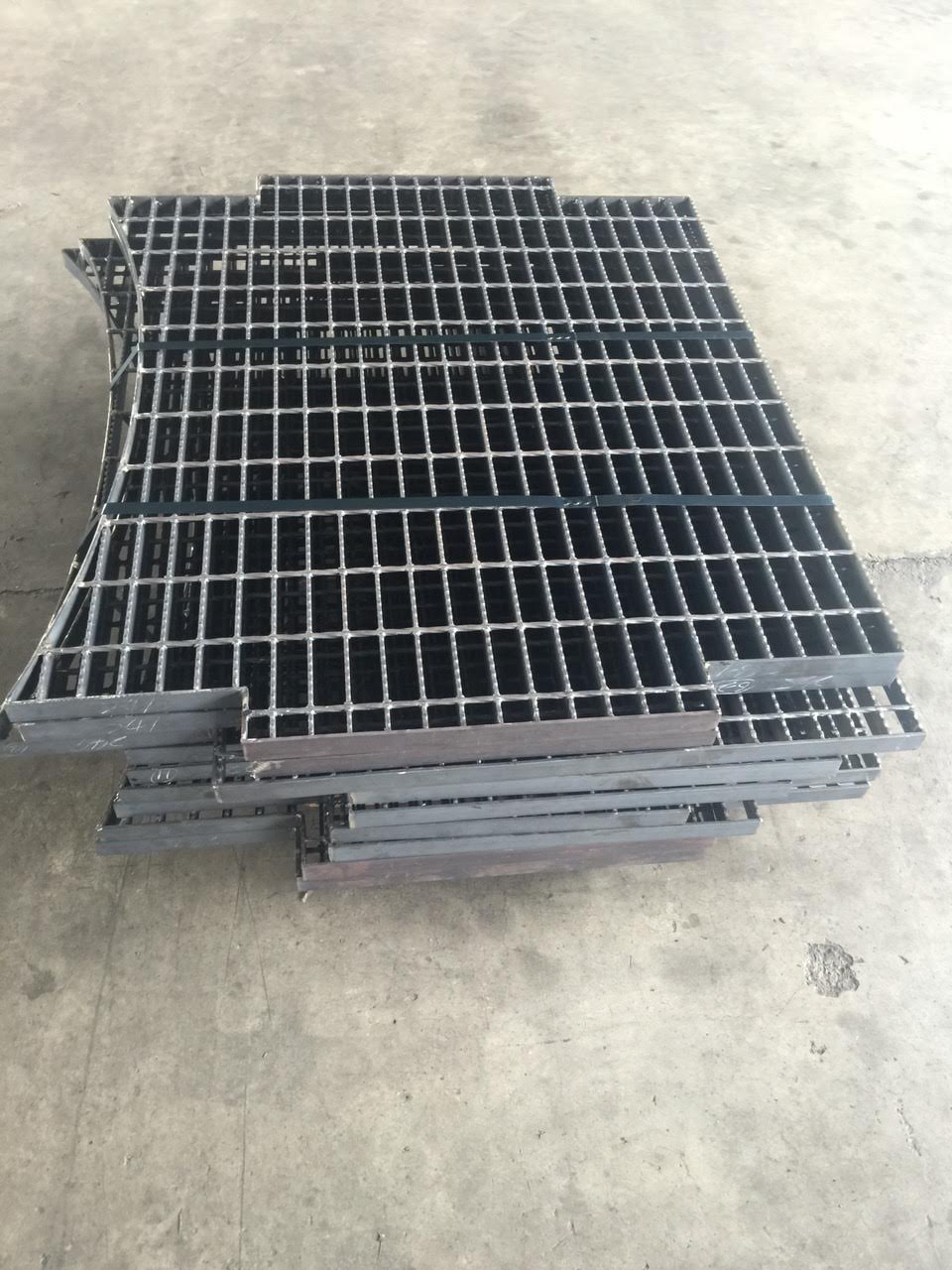

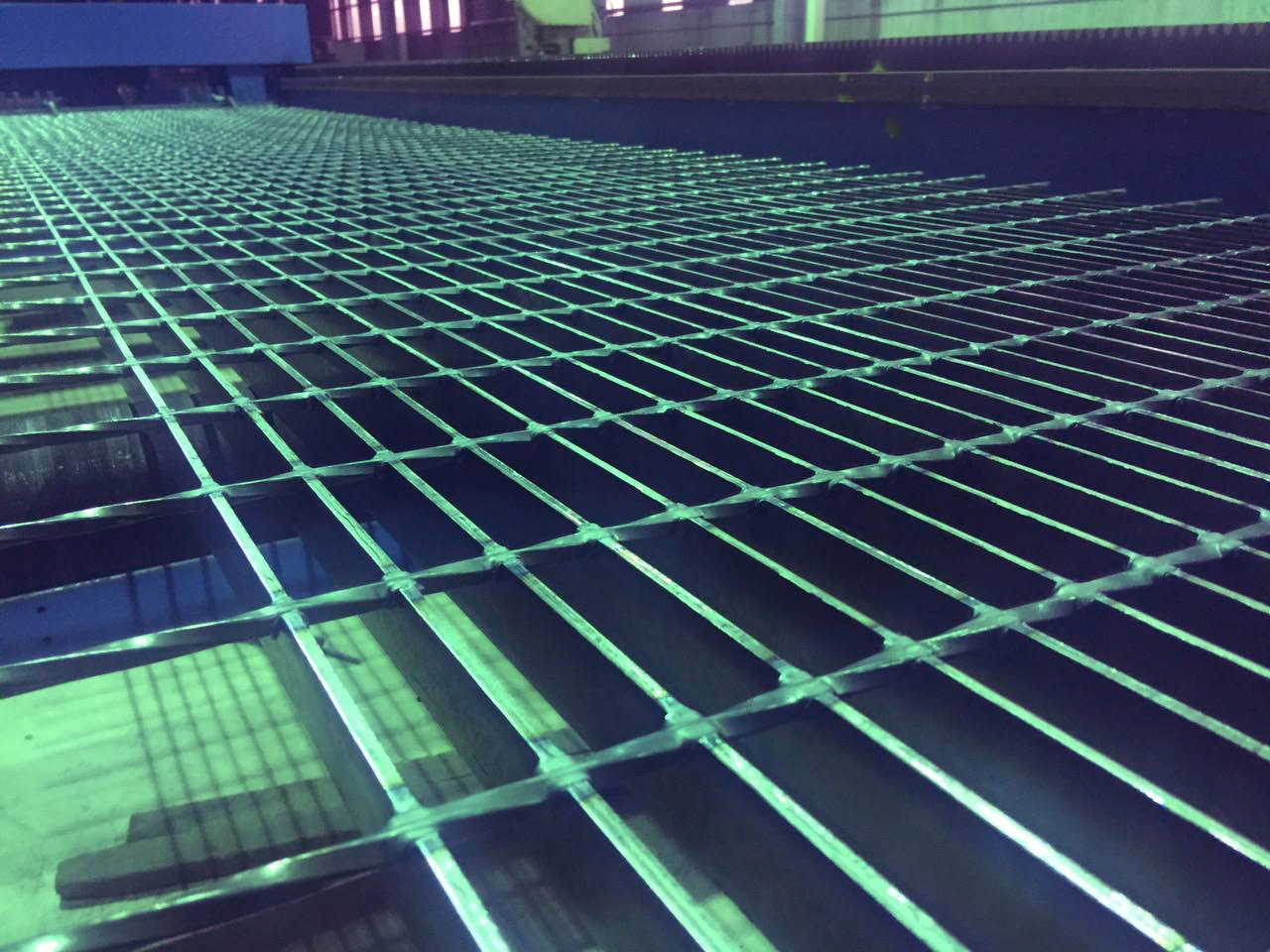

Construction Sample
